Customized China Factory Direct 20ft Luxury Container Homes Tiny House Prefab Modular House With Free Designs
20ft
$14,764.99
Skip to product information

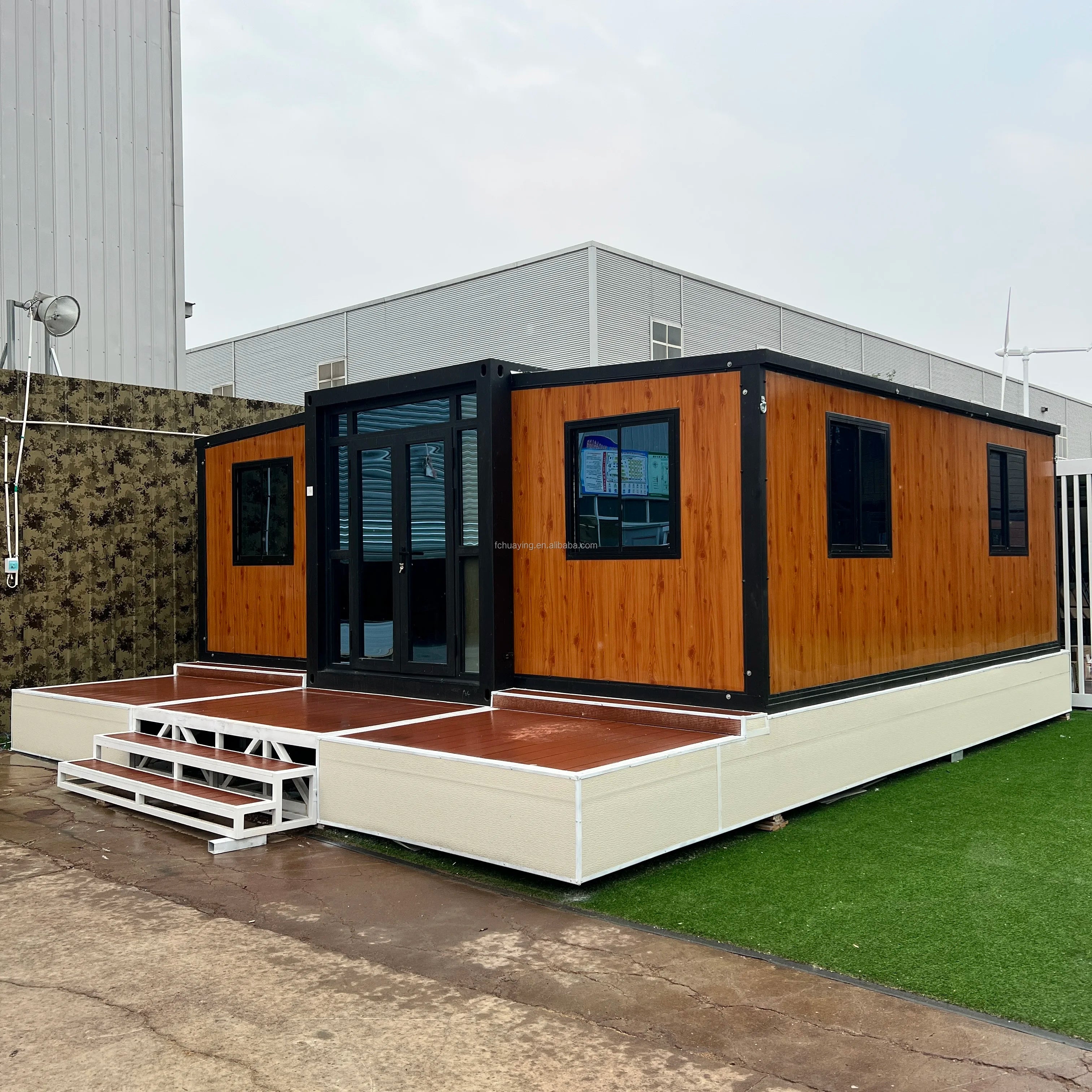

Customized China Factory Direct 20ft Luxury Container Homes Tiny House Prefab Modular House With Free Designs
$14,764.99
PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
20-FT standard wood grain double-wing expansion house technical parameters |
||||||||
Basic
Information
|
Expanded size (mm)L*W*H |
L5900*W6300*H2480 |
||||||
Internal space (mm) L*W*H |
L5640*W6140*H2240 |
|||||||
Folded size (mm) L*W*H |
L5900*W2200*H2480 |
|||||||
Weight (kG) |
2500 |
|||||||
Framework
|
Main beam |
Galvanized square tube 80*100*2.5MM Q235 |
||||||
Integrated column head |
Galvanized folding piece 150*210*2.0MM Q235 |
|||||||
Sub-frame |
Galvanized square tube 40*60*1.0MM Q235 |
|||||||
Hinges |
Galvanized thickened hinge Q235 |
|||||||
Frame color |
Painting process Black frame |
|||||||
Floor
|
Middle floor |
18mm glass magnesium board (does not contain asbestos) |
||||||
Both sides floor |
18mm glass magnesium board (does not contain asbestos) |
|||||||
Floor leather |
Floor leather Palm wood |
|||||||
Insulated wall
|
Wall panel |
70mm sandwich sandwich board, color roll double-sided 0.25 (wood grain color)Standard sandwich material is EPS |
||||||
Partition |
50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as abovef |
|||||||
Main top and side top |
50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as abovet |
|||||||

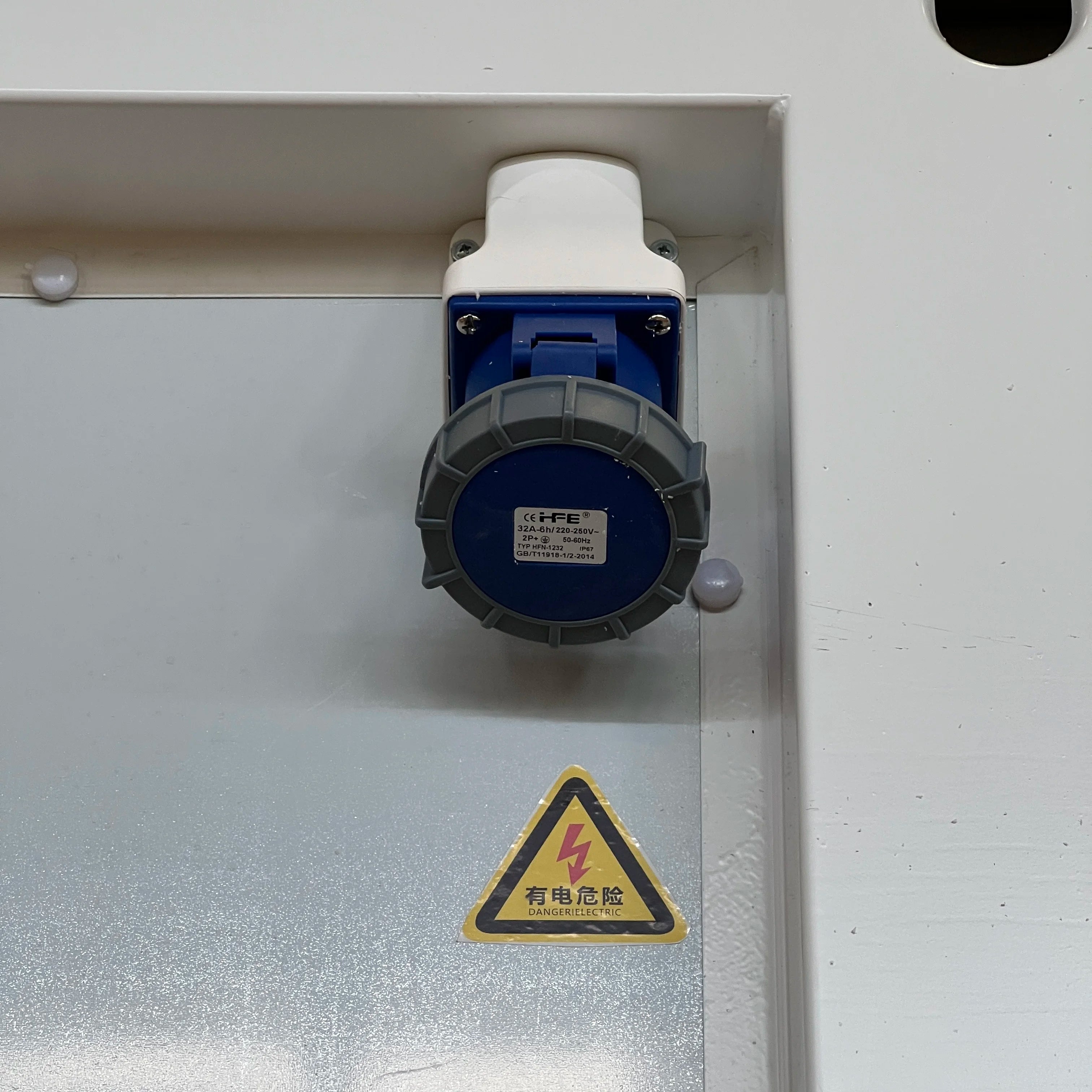

Electrical system
|
Parameters |
1. Standard Australian standard wires, 62 incoming wires, 4' air conditioning sockets, 2.5- ordinary sockets,
1.5- lighting.
(Circuits that meet certification reguirements can be customized according to the country) 2. Circuit breaker system; 1 2P63A main switch, 1 2P32A/2P20A/2P16 branch leakage protector.
3. Lighting; 6 LED ceiling lights.
4. Sockets:Standard Australian three-hole socket
(socket standards can be configured according to customer requirements)
|
||||||
Door and window system
|
Entrance door |
Standard thermally-insulated aluminum doors and windows (double glazed tempered glass with blue film) open outwards (door frame is black) Size: W1890*H2230 |
||||||
Window |
Standard aluminum alloy (double glass, tempered, blue film) sliding window with diamond mesh (window frame is black) 920*920*6 pieces |
|||||||
